Underground research facility St. Barbara mine
Lab Activities
Underground research facility St. Barbara mine was founded for professional and scientific research, educational purposes and testing required for the mine development. The test sites serve for development and installation of permanent and temporary experiments, as well as the performance of research activities and tests in ventilation, safety, geotechnics and field monitoring, radioactive waste and spent nuclear fuel management, underground excavations and support systems. The set experiments are also used for conducting fieldwork, demonstration and practical exercises of courses within the undergraduate and graduate study of Mining engineering.
Head of the Lab: This email address is being protected from spambots. You need JavaScript enabled to view it., PhD, associate professor
Analytical procedure and test method
| Microclimate measurements |
The current experimental setup for microclimatic parameters allows simultaneous and continuous measurement of barometric pressure, temperature and humidity at multiple points in the mine. The data is analysed and stored on a PLC, used to control the operation of the fan and transmitted over a GSM network remotely.
|
| Mjerenja u svrhu modeliranja procesa ventilacije podzemnih prostorija, strujanja i kvalitete zraka |
Unaprijeđenije podzemnog istraživačkog poligona, proširivanjem broja mjernih parametara i gustoće mjernih točaka, kako bi se ostvarila baza za modeliranje procesa ventilacije podzemnih prostorija, strujanja zraka te kvalitete zraka. |
|
THMC effects
|
The THMC effects experiment enables measurements of changes in rock, buffer material and heater in real in situ conditions, and refers to damage and thermal expansion of rocks, swelling and changes in buffer material, cannister corrosion, effects on instruments and measuring equipment.
|
|
Full-range tensiometer measurement
|
Functional measurement system for measuring water pressure/tension, soil temperature and soil moisture. |
|
Radon concentration measurements
|
Periodic measurement of radon concentration is carried out as a control of living / working conditions in the mine, in order to assess the need to protect people from natural ionizing radiation. Measurements are carried out periodically as needed, in the atmosphere of the mine and in the bedrock (bulk material) and in the soil around the mine. |
|
Radon concentration measurements in heavy-duty conditions
|
Functional system for measuring active radon concentration in a mine (heavy-duty conditions) and remote access and data transfer from measuring devices to a remote computer. |
|
Small and medium sized equipment
| Name inventory | Tech.characteristics | Application | Image |
|---|
|
PLC
|

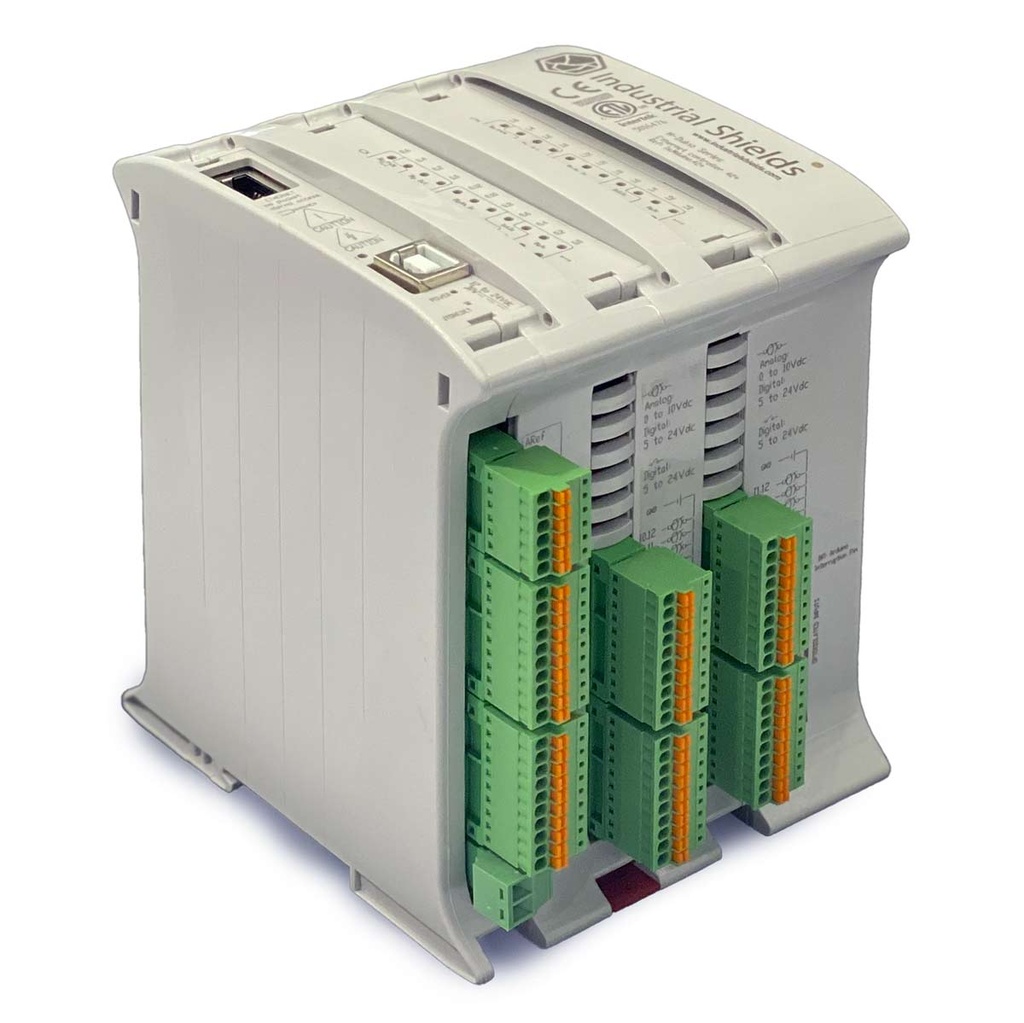

M-duino PLC equipped with analog/digital inputs / outputs, SD card, GPRS module, RS485 communication
|
Collection and storage of data from measuring transducers, transfer via GSM network, parameter analysis and fan control
|
 |
|
Measurement transducer
|

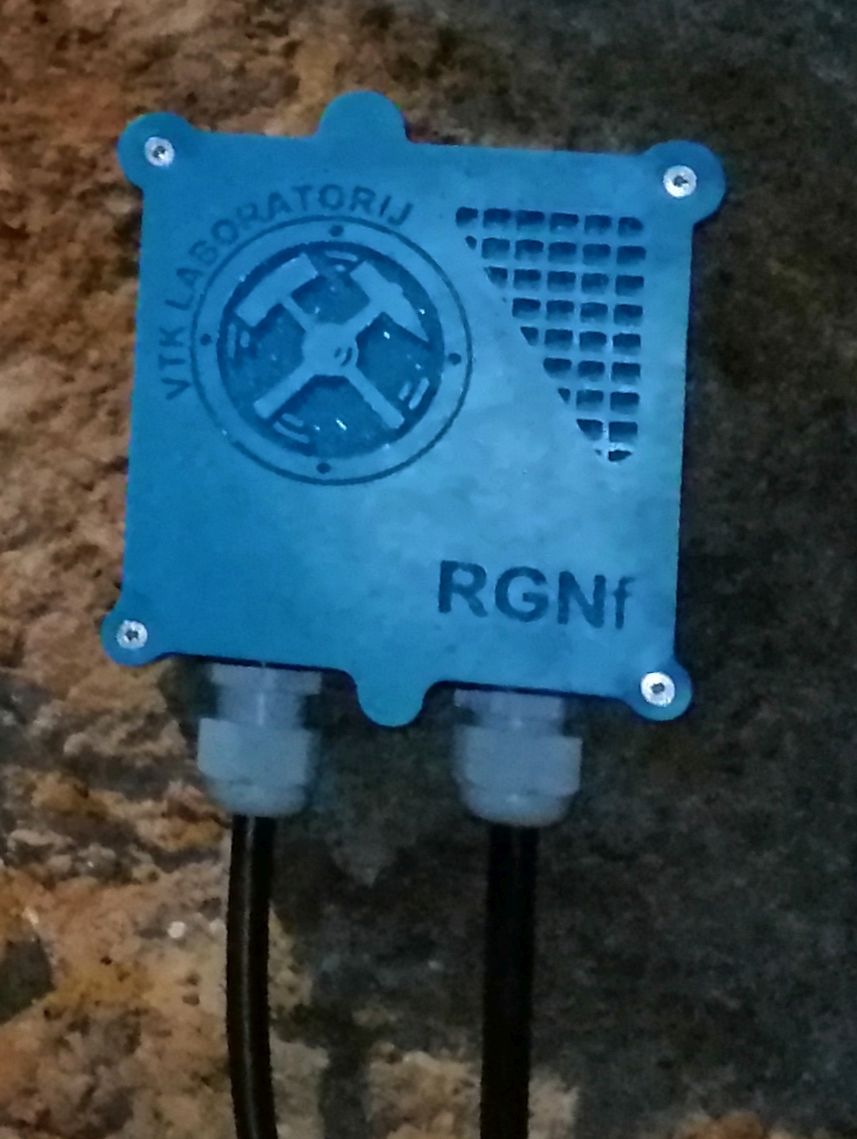

Sensirion SHT 31 temperature and humidity sensor, LPS25H barometric pressure sensor, RS485 communication module
|
Measurement of microclimatic parameters
|
 |
|
Measurement transducer
|
Rotronic HF 1 temperature and relative humidity sensor
|
Measurement of microclimatic parameters
|
|
|
S/FPT cable
|

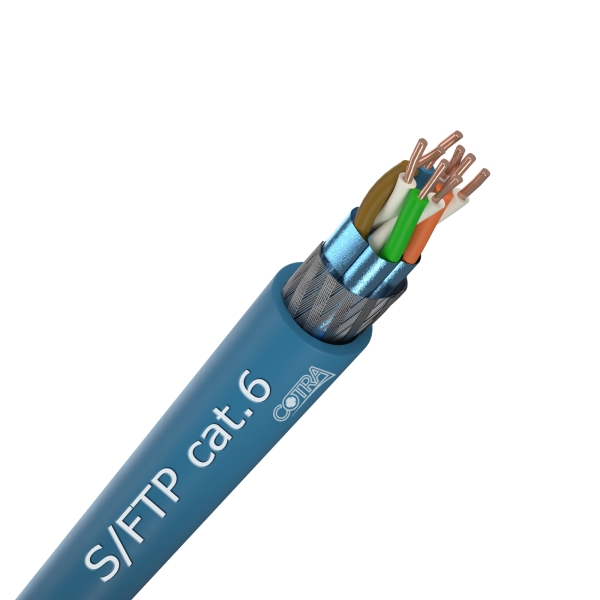

S / FPT Cat6 cable, shielded, PP outer sheath, 500 m
|
Communication network and sensor network power supply
|
 |
|
Cylindrical copper heater (vertical)
|

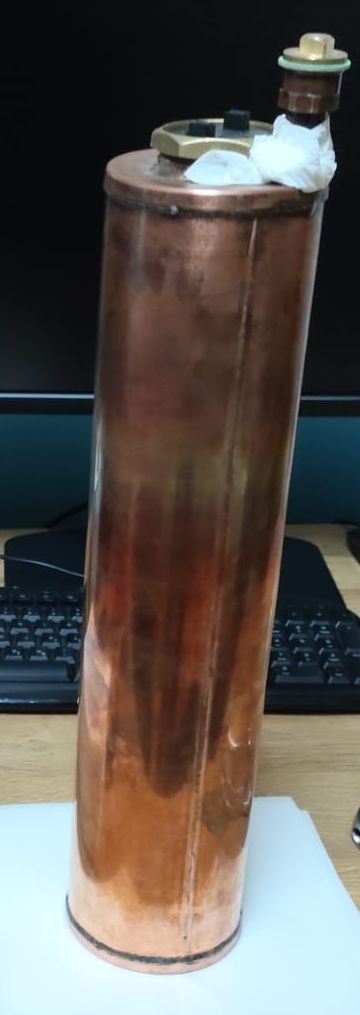

Electric heater, temperature regulated, oil-quartz heat transfer
|
Testing of THMK effects
|
|
|
Cylindrical copper heater (horizontal)
|
Electric heater, temperature regulated, oil-quartz heat transfer |
Testing of THMK effects |
 |
|
Tensiometer
|
UGT Full Range Tensiometer FRT 15D-SM
|
Testing of THMK effects |
 |
| Soil humidity transducer |
Sensor for soil moisture measurement |
Sensor for soil moisture measurement |
|
|
Temperature transducer
|

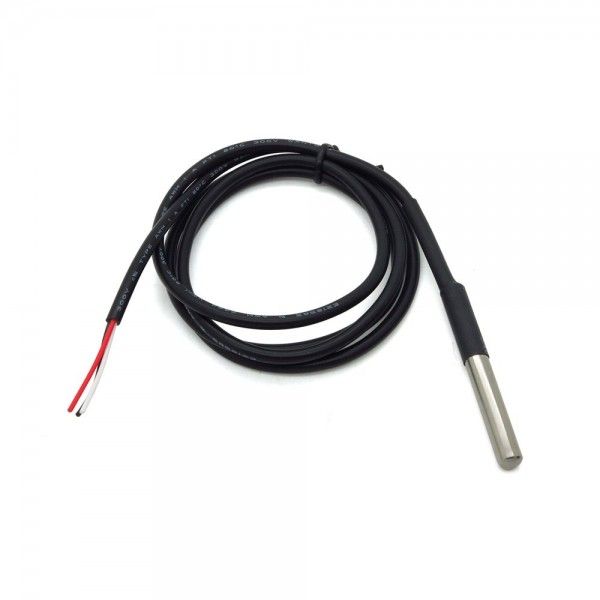

Dallas DS18B20 |
Testing of THMK effects |
 |
|
Control unit
|
PID heater controller, Arduino Leonardo, RS 485 module
|
Heater controls, sensor readings, communication |
 |
| Radon concentration measurement device |

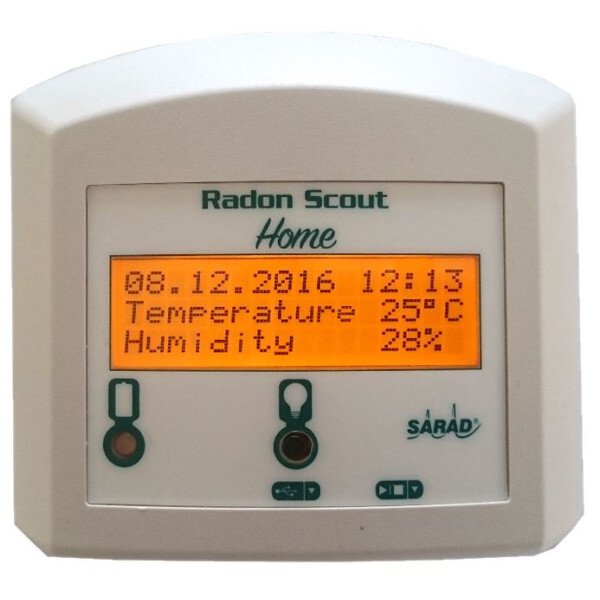

SARAD – Radon Scout Home
Bertin AlphaE

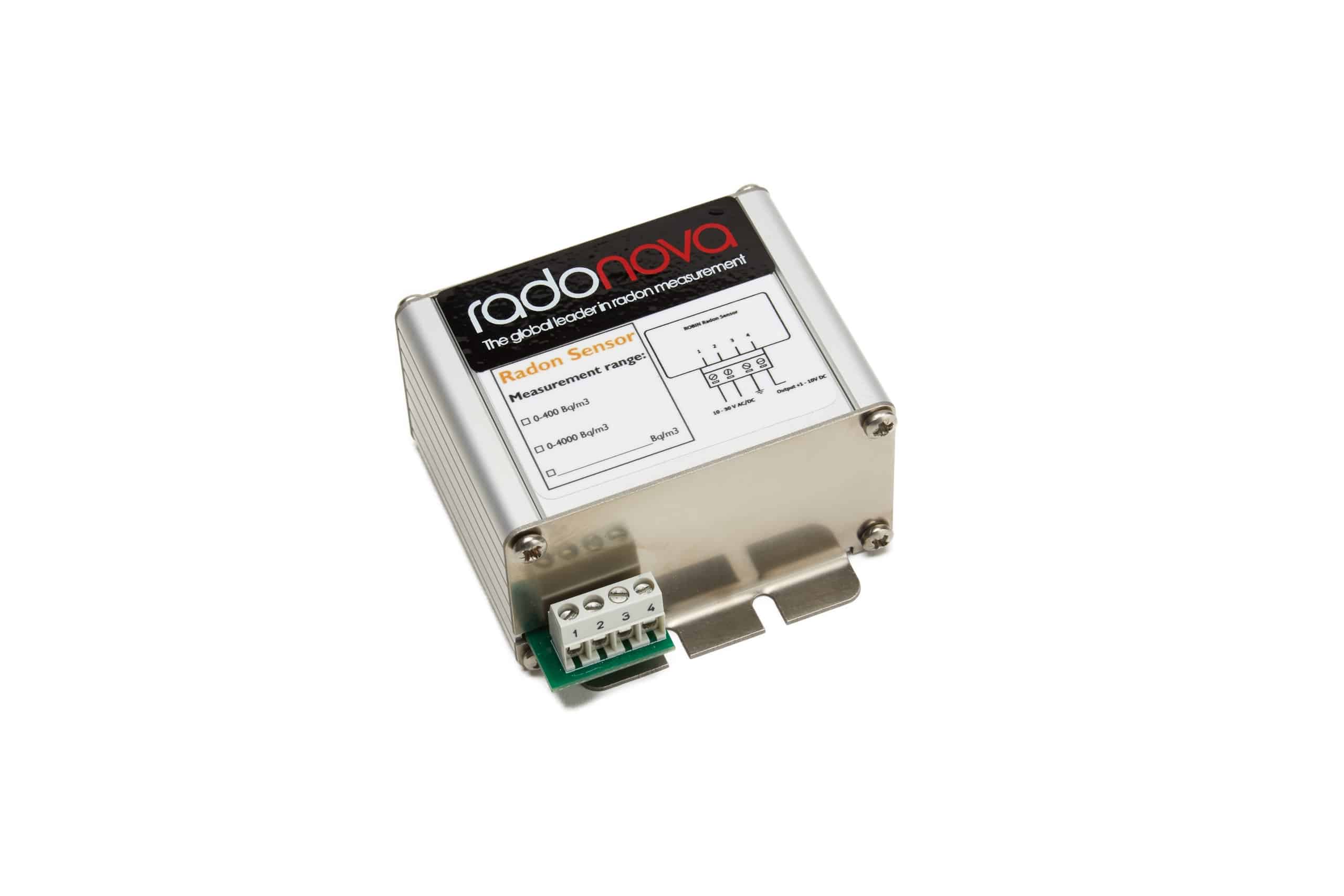

Radonova Robin
|
Measurements of Radon concentration in the atmosphere |
|
|
Meteorological data measuring device
|

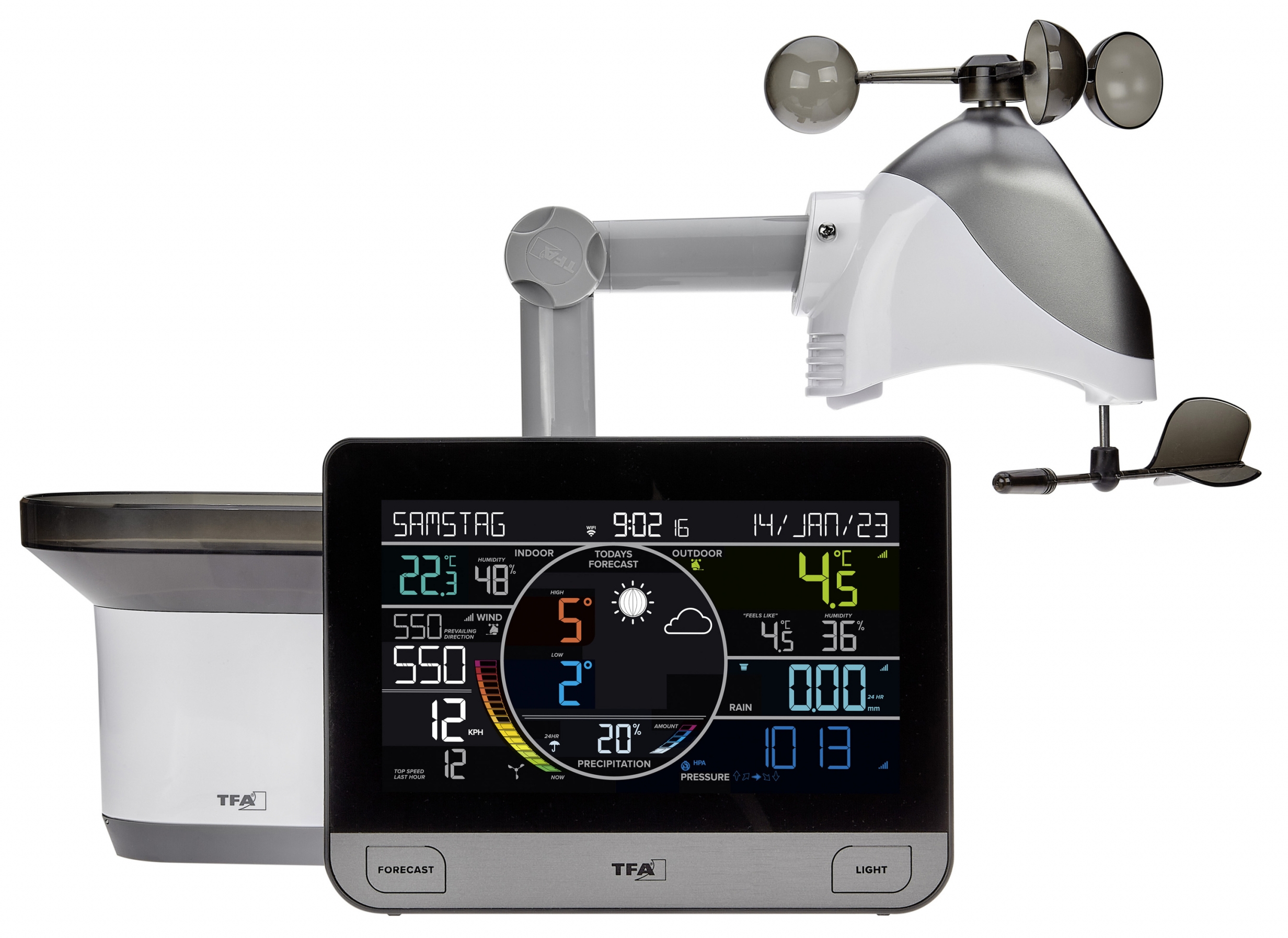

Wireless weather station with Wifi VIEW PRO 35.8003 |
Comprehensive weather observation |
 |
|
Teaching in the Lab (students' practical work)
|
Course
|
Forms of teaching and methods
|
|
Ventilation and dewatering
|
Practical exercises, thesis research
|
|
Safety technique
|
Practical exercises, thesis research
|
|
Underground Chambers and Tunnels Ventilation
|
Practical exercises, thesis research
|
| Radioactive waste and spent nuclear fuel management |
Practical exercises, thesis research
|
| Testing and Monitoring in Geotehnical Engineering |
Practical exercises, thesis research
|
| Ground Improvement |
Practical exercises, thesis research
|
|
Teaching in Lab (Students’ research)
|
Student
|
Thesis
|
|
David Šarko
|
Analysis of the dew point of atmospheric air in the vicinity of the mine St. Barbara, Rude
|
|
María González Llaneza
|
Simulation and Improvement on Ventilation System of Sveta Barbara Mine in Sambor
|
|
Projects in Lab
|
Scientific research
|
|
Improvement of the ventilation system of the st. Barbara mine and long-term observation of microclimatic and ventilation parameters
|
|
In situ simulation of thermal-hydro-mechanical-chemical effects on rock and buffer material and verification of the concept by a numerical model
|
|
Mock-up experiment and impact analysis of SNF cannisters
|
|
Development of measurement systems and modeling of work processes in mines and similar facilities (REMEASURE)
|
|
|
|
Educational
|
|
|
|
Professional
|
|
